Request/Response
Illustrates the use of the Request/Response communication pattern in simulation.
This report has been automatically generated by ComSim by Trust Anchor Group. The following command-line arguments where used to execute the simulation and generate the report:
ComSim.exe -d ComSim\bin\Debug\netcoreapp2.2\Data -e -i Examples\RequestResponse.xml -s ComSim\bin\Debug\netcoreapp2.2\Sniffers -st Examples\SnifferXmlToHtml.xslt -mr C:\ProgramData\IoT Gateway\Root\Reports\RequestResponse.md -xr C:\ProgramData\IoT Gateway\Root\Reports\RequestResponse.xml -master /Master.md -l C:\ProgramData\IoT Gateway\Root\Reports\RequestResponse.Log.xml -lt C:\ProgramData\IoT Gateway\Transforms\EventXmlToHtml.xslt -af ComSim\bin\Release\netcoreapp2.2\publish
Description
Simulates 100 XMPP clients over TCP sending Machine-to-Machine (M2M) messages between each other using the Request/Response pattern. An unsigned message is sent from one participant to another, which responds with a signed copy of the same XML. The party sending the request then validates the response. Requests are sent at a total frequency of 1000 requests per minute.
Preparation
XMPP
The XMPP Client accounts are created automatically, if the broker being used supports XEP-0077: In-Band Registration. The account registration process can be protected using keys and secrets, if the broker supports XEP-0348: Signing Forms.
General
| Time units | |
|---|---|
| Simulation Duration: | 1 min |
| Time Base: | Start of Simulation |
| Time Unit: | 1 s |
| Time Cycle: | 1 min |
| Bucket Time: | 1 s |
| Start Date: | 2020-10-13 |
| Start Time: | 13:25:25 |
| End Date: | 2020-10-13 |
| End Time: | 13:26:25 |
Activities
SendSignatureRequest
This activity sends an unsigned XML message to a random recipient for signature.
ProcessSignatureRequest
Processes a received signature request.

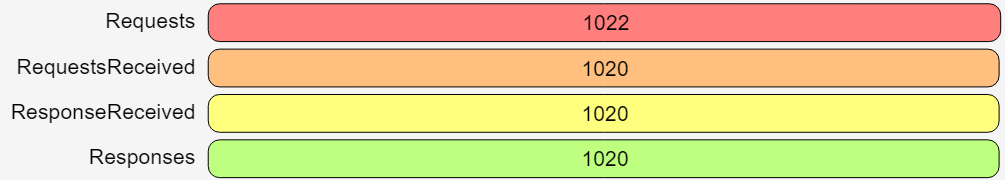

Counters
Measurements

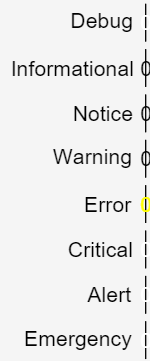

Events
