Waher.Events.IObservableLayer Interface Reference

Interface for classes that can be observed. More...

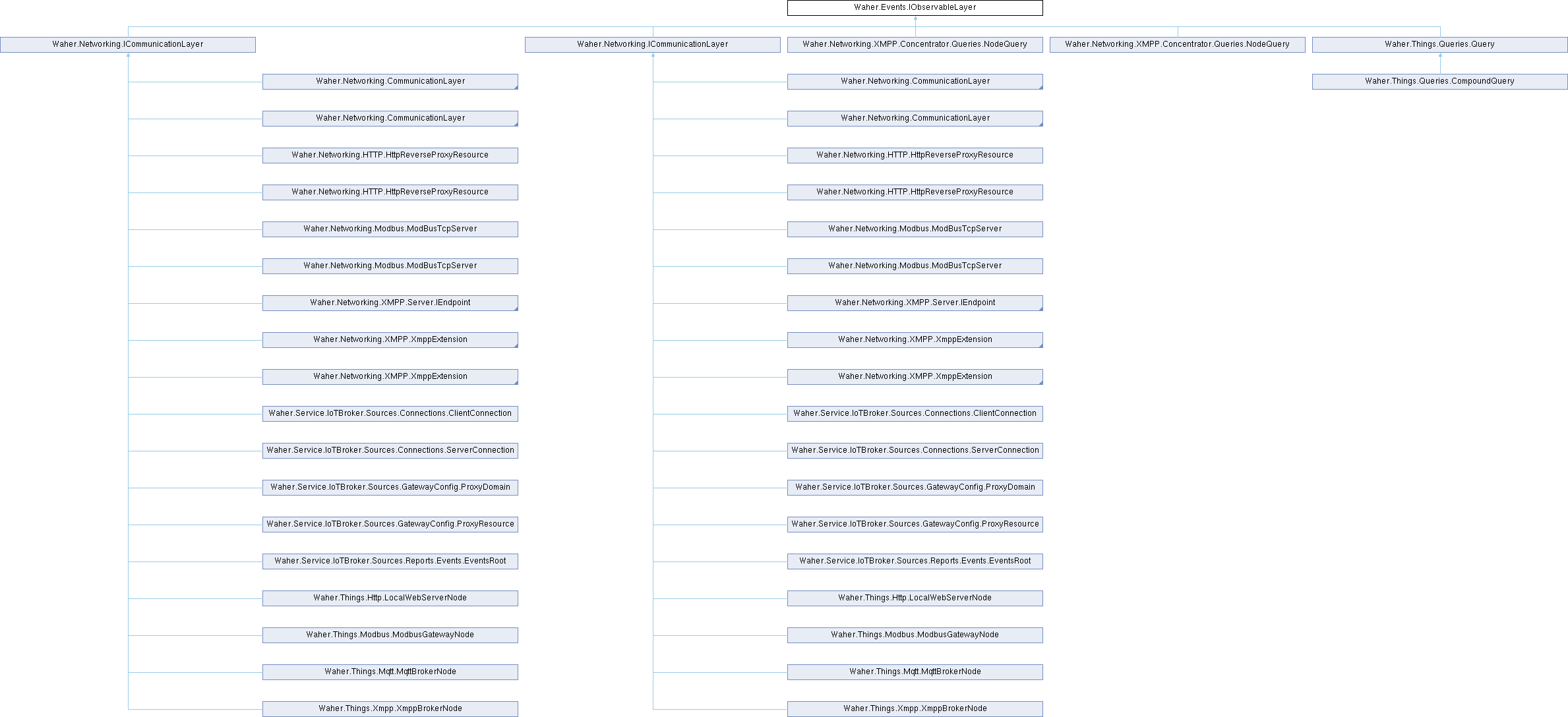

Inheritance diagram for Waher.Events.IObservableLayer:

Public Member Functions
void	Information (string Comment)
	Called to inform the viewer of something. More...
void	Information (DateTime Timestamp, string Comment)
	Called to inform the viewer of something. More...
void	Warning (string Warning)
	Called to inform the viewer of a warning state. More...
void	Warning (DateTime Timestamp, string Warning)
	Called to inform the viewer of a warning state. More...
void	Error (string Error)
	Called to inform the viewer of an error state. More...
void	Error (DateTime Timestamp, string Error)
	Called to inform the viewer of an error state. More...
void	Exception (string Exception)
	Called to inform the viewer of an exception state. More...
void	Exception (DateTime Timestamp, string Exception)
	Called to inform the viewer of an exception state. More...
void	Exception (Exception Exception)
	Called to inform the viewer of an exception state. More...
void	Exception (DateTime Timestamp, Exception Exception)
	Called to inform the viewer of an exception state. More...

Properties
bool	DecoupledEvents [get]
	If events raised from the communication layer are decoupled, i.e. executed in parallel with the source that raised them. More...

Detailed Description

Interface for classes that can be observed.

Definition at line 8 of file IObservableLayer.cs.

Member Function Documentation

Error() [1/2]

void Waher.Events.IObservableLayer.Error	(	DateTime	Timestamp,
		string	Error
	)

Called to inform the viewer of an error state.

Parameters

Timestamp	Timestamp of event.
Error	Error.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Error() [2/2]

void Waher.Events.IObservableLayer.Error

(

string

Error

)

Called to inform the viewer of an error state.

Parameters

Error

Error.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Exception() [1/4]

void Waher.Events.IObservableLayer.Exception	(	DateTime	Timestamp,
		Exception	Exception
	)

Called to inform the viewer of an exception state.

Parameters

Timestamp	Timestamp of event.
Exception	Exception.

Implemented in Waher.Networking.BinaryTcpClient, Waher.Networking.BinaryTcpClient, Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Exception() [2/4]

void Waher.Events.IObservableLayer.Exception	(	DateTime	Timestamp,
		string	Exception
	)

Called to inform the viewer of an exception state.

Parameters

Timestamp	Timestamp of event.
Exception	Exception.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Exception() [3/4]

void Waher.Events.IObservableLayer.Exception

(

Exception

Exception

)

Called to inform the viewer of an exception state.

Parameters

Exception

Exception.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Exception() [4/4]

void Waher.Events.IObservableLayer.Exception

(

string

Exception

)

Called to inform the viewer of an exception state.

Parameters

Exception

Exception.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Information() [1/2]

void Waher.Events.IObservableLayer.Information	(	DateTime	Timestamp,
		string	Comment
	)

Called to inform the viewer of something.

Parameters

Timestamp	Timestamp of event.
Comment	Comment.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Information() [2/2]

void Waher.Events.IObservableLayer.Information

(

string

Comment

)

Called to inform the viewer of something.

Parameters

Comment

Comment.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Warning() [1/2]

void Waher.Events.IObservableLayer.Warning	(	DateTime	Timestamp,
		string	Warning
	)

Called to inform the viewer of a warning state.

Parameters

Timestamp	Timestamp of event.
Warning	Warning.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Warning() [2/2]

void Waher.Events.IObservableLayer.Warning

(

string

Warning

)

Called to inform the viewer of a warning state.

Parameters

Warning

Warning.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Networking.XMPP.XmppExtension, Waher.Networking.CommunicationLayer, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Property Documentation

DecoupledEvents

bool Waher.Events.IObservableLayer.DecoupledEvents

get

If events raised from the communication layer are decoupled, i.e. executed in parallel with the source that raised them.

Implemented in Waher.Service.IoTBroker.Sources.Connections.ClientConnection, Waher.Service.IoTBroker.Sources.Connections.ServerConnection, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyDomain, Waher.Service.IoTBroker.Sources.GatewayConfig.ProxyResource, Waher.Service.IoTBroker.Sources.Reports.Events.EventsRoot, Waher.Networking.HTTP.HttpReverseProxyResource, Waher.Networking.Modbus.ModBusTcpServer, Waher.Networking.CommunicationLayer, Waher.Networking.XMPP.Concentrator.Queries.NodeQuery, Waher.Networking.XMPP.XmppExtension, Waher.Things.Http.LocalWebServerNode, Waher.Things.Modbus.ModbusGatewayNode, Waher.Things.Mqtt.MqttBrokerNode, Waher.Things.Xmpp.XmppBrokerNode, and Waher.Things.Queries.Query.

Definition at line 14 of file IObservableLayer.cs.

---

The documentation for this interface was generated from the following file:

• C:/My Projects/IoTGateway/Events/Waher.Events/IObservableLayer.cs
